The heading Loss on dryng (see Loss on Dryng) is used in those cases where the loss sustained on heating may not entirely water.

METHOD I (TITRIMETRIC)

Determine the water by Method Ia, unless otherwise specified in the individual monograph.

Method la (Direct Titration)

Principle - The titrimetric determination of water is based upon the quantitative reaction of water with an anhydrous solution of sulfur dioxide and iodine in the presence of a buffer that reacts with hydrogen ions.

In the original titrimetric solution, known as Karl Fischer Reagent the sulfur dioxide and iodine are dissolved in pyridine and methanol. The test specimen may be titrated with the Reagent directly, or the analysis may be carried out by a residual titration procedure.The stoichiometry of the reaction is not exact, and the reproducibility of a determination depends upon such factors, as the relative concentrations of the Reagent ingredients, the nature of the inert solvent used to dissolve the test specimen, and the technique used in the particular determination. Therefore, an empirically standardized technique is used in order to achieve the desired accuracy. Precision in the method is governed largely by the extent to which atmospheric moisture is excluded from the system. The titration of water is usually carried out with the use of anhydrous methanol as the solvent for the test specimen; however, other suitable solvents may be used for special or unusual test specimens.

Apparatus- Any apparatus may be used that provides for adequate exclusion of atmospheric moisture and determination of the endpoint. In the case of a colorless solution that is titrated directly, the endpoint may be observed visually as a change in color from canary yellow to amber. The reverse is observed in the case of a test specimen that is titrated residually. More commonly, however, the endpoint is determined electrometrically with an apparatus employing a simple electrical circuit that serves to impress about 200 mV of applied potential between a pair of platinum electrodes (about 5 MM2 in area and about 2.5 cm apart) immersed in the solution to be titrated. At the endpoint of the titration a slight excess of the reagent increases the flow of current to between 50 and 150 microamperes for 30 seconds to 30 minutes depending upon the solution being titrated. The time is shortest for substances that dissolve in the reagent. With some automatic titrators, the abrupt change in current or potential at the endpoint serves to close a solenoid-operated valve that controls the buret delivering the titrant. Commercially available apparatus generally comprises a closed system consisting of one or automatic burets and a tightly covered titration vessel fitted with the necessary electrodes and a magnetic stirrer. The air in the system is kept dry with a suitable desiccant such as phosphorus pentoxide, and the titration vessel may be purged by means of a stream of dry nitrogen or current of dry air.

Reagent- Prepare the Karl Fischer Reagent as follows. Add 125 g of iodine to a solution containing 670 mL of methanol and 170 mL of pyridine, and cool. Place 100 mL of pyridine in a 250 mL graduated cylinder, and, keeping the pyridine cold in an ice bath pass in dry sulfur dioxide until the volume reaches 200 mL. Slowly add this solution, with shaking, to the cooled iodine mixture. Shake to dissolve the iodine, transfer the solution to the apparatus, and allow the solution to stand overnight before standardizing. One mL of this solution when freshly prepared is equivalent to approximately 5 mg of water, but it deteriorates gradually; therefore, standardize it within 1 hour before use, or daily if in continuous use. Protect from light while in use. Store any bulk stock of the reagent in a suitably sealed, glass-stoppered container, fully protected from light, and under refrigeration.

A commercially available, stabilized solution of Karl Fischer type reagent may be used. Commercially available reagents containing solvents or bases other than pyridine or alcohols other than methanol may be used also. These may be single solutions or reagents formed in situ by combining the components of the reagents present in two discrete solutions. The diluted Reagent called for in some monographs should be diluted as directed by the manufacturer. Either methanol or other suitable solvent, such as ethylene glycol monomethyl ether, may be used as the diluent.

Test Preparation- Unless otherwise specified in the individual monograph, use an accurately weighed or measured amount of the specimen under test estimated to contain 10 to 250 mg of water.

Where the specimen under test is an aerosol with propellant, store in a freezer for not less than 2 hours open the container, and test 10.0 mL of the well-mixed specimen. In titrating the specimen, determine the endpoint at a temperature of 10ºC or higher.
Where the specimen under test is capsules, use a portion of the mixed contents of not less than 4 capsules.
Where the specimen under test is tablets, use powder from not less than 4 tablets ground to a fine powder in an atmosphere of about 10% relative humidity.

Where the monograph specifies that the specimen under test is hygroscopic, use a dry syringe to inject an appropriate volume of methanol, or other suitable solvent, accurately measured, into a tared container, and shake to dissolve the specimen. Using the same syringe, remove the solution from the container and transfer it to a titration vessel prepared as directed under Procedure. Repeat the procedure with a second portion of methanol, or other suitable solvent,  accurately measured, add this washing to the titration vessel, and immediately titrate. Determine the water content, in mg, of a portion of solvent of the same total volume as that used to dissolve the specimen and to wash the container and syringe, as directed under Standardization of Water Solution for Residual Titrations, and subtract this value from, the water content, in mg, obtained in the titration of the specimen under test. Dry the container and its closure at 100ºC for 3 hours, allow to cool in a desiccator, and weigh. Determine the weight of specimen tested from the difference in weight from the initial weight of the container.

Standardization of the Reagent- Place enough methanol or other suitable solvent in the titration vessel to cover the electrodes, and add sufficient Reagent to give the characteristic endpoint color, or 100 ± 50 microamperes of direct current at about 200 mV of applied potential.

For determination of trace amounts of water (less than 1%), sodium tartrate may be used as a convenient water reference substance. Quickly add 150 to 350 mg of sodium tartrate (C₄H₄Na₂O₆.2H₂0), accurately weighed by difference, and titrate to the endpoint. The water equivalence factor F, in mg of water per mL of reagent, is given by the formula:

2(18.02/230.08)(W/V),

in which 18.02 and 230.08 are the molecular weights of water and sodium tartrate dihydrate, respectively. W is the weight, in mg, of sodium tartrate dihydrate, and V is the volume, in mL, of the Reagent consumed in the second titration.

For the precise determination of significant amounts of water (more than 1%), use purified water obtained by distillation as the reference substance. Quickly add between 25 and 250 mg of water, accurately weighed by difference, from a weighing pipet or from a pre-calibrated syringe or micropipet, the amount taken being governed by the reagent strength and the buret size, as referred to under Volumetric Apparatus (31). Titrate to the endpoint. Calculate the water equivalence factor, F, in mg of water per mL of reagent, taken by the formula:

W/ V

in which W is the weight, in mg, of the water, and V is the volume, in mL, of the reagent required.

Procedure- Unless otherwise specified, transfer 35 to 40 mL of methanol or other suitable solvent to the titration vessel, and titrate with the Reagent to the electrometric or visual endpoint to consume any moisture that may be present. (Disregard the volume consumed, since it does not enter into the calculations.) Quickly add the Test  Preparation, mix, and again titrate with the Reagent to the electrometric or visual endpoint. Calculate the water content of the specimen, in mg, taken by the formula:

SF,

in which S is the volume, in mL, of the Reagent consumed in the second titration, and F is the water equivalence factor of the Reagent.

Method lb (Residual Titration)

Principle- See the information given in the section Principle under Method Ia. In the residual titration, excess Reagent is added to the test specimen, sufficient time is allowed for the reaction to reach completion, and the unconsumed Reagent is titrated with a standard solution of water in a solvent such as methanol. The residual titration procedure is applicable generally and avoids the difficulties that may be encountered in the direct titration of substances from which the bound water is released slowly.

Apparatus, Reagent, and Test Preparation- Use Method Ia.

Standardization of Water Solution for Residual Titration- Prepare a Water Solution by diluting 2 mL of water with methanol or other suitable solvent to 1000 mL. Standardize this solution by titrating 25.0 mL with the Reagent, previously standardized as directed under Standardization of the Reagent. Calculate the water content, in mg per mL, of the Water Solution taken by the formula:

VF/25,

in which V is the volume of the Reagent consumed, and F is the water equivalence factor of the Reagent. Determine the water content of the Water Solution weekly, and standardize the Reagent against it periodically as needed.

Procedure- Where the individual monograph specifies that the water content is to be determined by Method lb, trasnfer 35 to 40 mL of methanol or other suitable solvent to the titration vessel, and titrate with the Reagent to the electrometric or visual endpoint. Quickly add the Test Preparation, mix, and add an accurately measured excess of the Reagent. Allow sufficient time for the reaction to reach completion, and titrate the unconsumed Reagent with standardized Water Solution to the electrometric or visual endpoint. Calculate the water content of the specimen, in mg, taken by the formula:

F(X' - XR),

in which F is the water equivalence factor of the Reagent, X' is the volume, in mL, of the Reagent added after introduction of the specimen, X is the volume, in mL, of standardized Water Solution required to neutralize the unconsumed Reagent, and R is the ratio, V'/25 (mL Reagent/mL Water Solution), determined from the Standardization of Water Solution for Residual Titration.

Method Ic (Coulometric Titration)

Principle- The Karl Fischer reaction is used in the coulometric determination of water. Iodine, however, is not added in the form of a volumetric solution but is produced in an iodide-containing solution by anodic oxidation. The reaction cell usually consists of a large anode compartment and a small cathode compartment that are separated by
a diaphragm. Other suitable types of reaction cells (e.g., without diaphragms) may also be used. Each compartment has a platinum electrode that conducts current through the cell. Iodine, which is produced at the anode electrode, immediately reacts with water present in the compartment. When all the water has been consumed an excess of iodine occurs, which can be detected coulometrically, thus indicating the endpoint. Moisture is eliminated from the system by pre-electrolysis, which can take several hours. Therefore, changing the Karl Fischer solution after each determination is not practical. Individual determinations can be carried out in succession in the same reagent solution. A requirement for this method is that each component of the test specimen is compatible with the other components and no side reactions take place. Samples may be transferred into the vessel as solids or as solutions by means of injection through a septum. Gases can be introduced into the cell by means of a suitable gas inlet tube. For the water determination of solids, another common technique is to dissolve the solid in a suitable solvent and then inject a portion of this solution into the cell. In the case of insoluble solids water may be extracted using suitable solvents and then the extracts injected into the coulometric cell. Alternatively, an evaporation technique may be used in which the sample is heated in a tube and the water is evaporated and carried into the cell by means of a stream of dry inert gas. Precision in the method is predominantly governed by the extent to which atmospheric moisture is excluded from the system. Control of the system may be monitored by measuring the amount of baseline drift. The titration of water in solid test specimens is usually carried out with the use of anhydrous methanol as the solvent. Other suitable solvents may be used for special or unusual test specimens. This method is particularly suited to chemically inert substances like hydrocarbons, alcohols, and ethers. In comparison with the volumetric Karl Fischer titration, coulometry is a micro-method. The method utilizes extremely small amounts of current. It is predominantly used for substances with a very low water content (0.1% to 0.0001%).

Apparatus- Any commercially available apparatus consisting of an absolutely tight system fitted with the necessary electrodes and a magnetic stirrer is appropriate. The instrument's microprocessor controls the analytical procedure and displays the results. Calibration of the instrument is not necessary, as the current consumed can be measured absolutely.

Reagent- See Reagent under Method Ia.

Test Preparation- Using a dry syringe inject an appropriate volume of test specimen estimated to contain 0.5 to 5 mg of water,  accurately measured, into the anolyte solution. The sample may be also be introduced as a solid, accurately weighed, into the anolyte solution. Perform coulometric titration, and determine the water content of the specimen under test.

Alternatively, where the specimen is a soluble solid, dissolve an appropriate quantity, accurately weighed, in anhydrous methanol or other suitable solvent and inject a suitable portion into the anolyte solution.

Where the specimen is an insoluble solid, the water may be extracted using a suitable anhydrous solvent from which an appropriate quantity, accurately weighed, may be injected into the anolyte solution. Alternatively an evaporation technique may be used.

Procedure- Quickly inject the Test Preparation, or transfer the solid sample, into the anolyte, mix, and perform the coulometric titration to the electrometric endpoint. Read the water content of the Test Preparation directly from the instrument display, and calculate the percentage that is present in the substance.

METHOD II (AZEOTROPIC-TOLUENE, DISTILLATION)

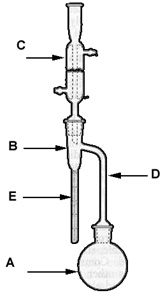

Apparatus- Use a 500-mL glass flask A connected by means of a trap B to a reflux condenser C by ground glass joints (see figure).



The critical dimensions of the parts of the apparatus are as follows. The connecting tube D is 9 to 11 mm in internal  diameter. The trap is 235 to 240 mm in length. The condenser is of the straight-tube type, is approximately 400 mm in lenght and not less than 8 mm in bore diameter. The receiving tube E has a 5-mL capacity, and its cylindrical portion, 146 to 156 mm in length, is graduated in 0.1-mL subdivisions, so that the error of reading is not greater than 0.05 mL for any indicated volume. The source of heat is preferably an electric heater with rheostat control or an oil bath. The upper portion of the flask and the connecting tube may be insulated.

Clean the receiving tube and the condenser with chromic acid cleaning mixture, thoroughly rinse with water, and dry in an oven. Prepare the toluene to be used by first shaking with a quantity of water, separating the excess water, and distilling the toluene.


Procedure.- Place in the dry flask a quantity of the substance, weighed accurately to the nearest centigram, which ís expected to yield 2 to 4 mL of water. lf the substance is of a pasty character, weigh it in a boat of metal foil of a size that will just pass through the neck of the flask. lf the substance is likely to cause bumping, add enough dry, washed sand to cover the bottom of the flask, or a number of capillary melting-point tubes, about 100 mm in length, sealed at the upper end. Place about 200 mL of toluene in the flask, connect the apparatus, and fill the receiving tube E with toluene poured through the top of the condenser. Heat the flask gently for 15 minutes and, when the toluene begins to boil, distil at the rate of about 2 drops per second until most of the water has passed over, then increase the rate of distillation to about 4 drops per second. When the water has apparently all distílled over, rinse the inside of the condenser tube with toluene while brushing down the tube with a tube brush attached to a copper wire and saturated with toluene. Continue the distíllation for 5 minutes, then remove the heat, and allow the receiving tube to cool to room temperature. lf any droplets of water adhere to the walls of the receiving tube, scrub them down with a brush consisting of a rubber band wrapped around a copper wire and wetted with toluene. When the water and toluene have separated completely, read the volume of water, and calculate the percentage that was present in the substance.

METHOD III (GRAVIMETRIC)

Procedure for Chemicals- Proceed as directed in the individual monograph preparing the chemical as directed under Loss on Drying

Procedure for Biologics- Proceed as directed in the individual monograph
Procedure for Vegetable Drugs- Place about 10 g of the drug, prepared as directed (see Vegetable Drugs-Methods of Analysis) and accurately weighed, in a tared evaporating dish. Dry at 105ºC for 5 hours, and weigh. Continue the drying and weighing at 1 hour intervals until the difference between two successive weighings corresponds to not more than 0.25%.
